Overview

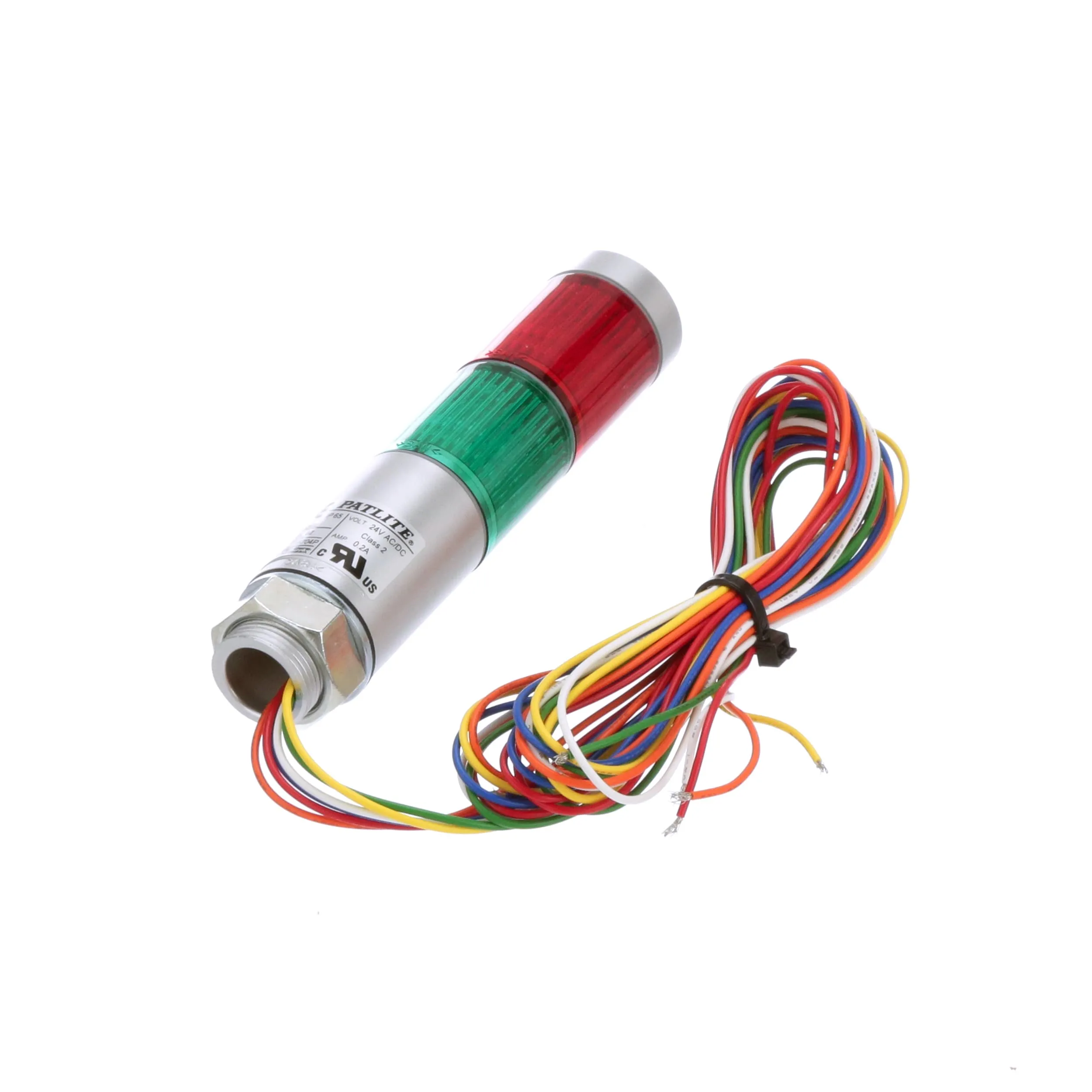

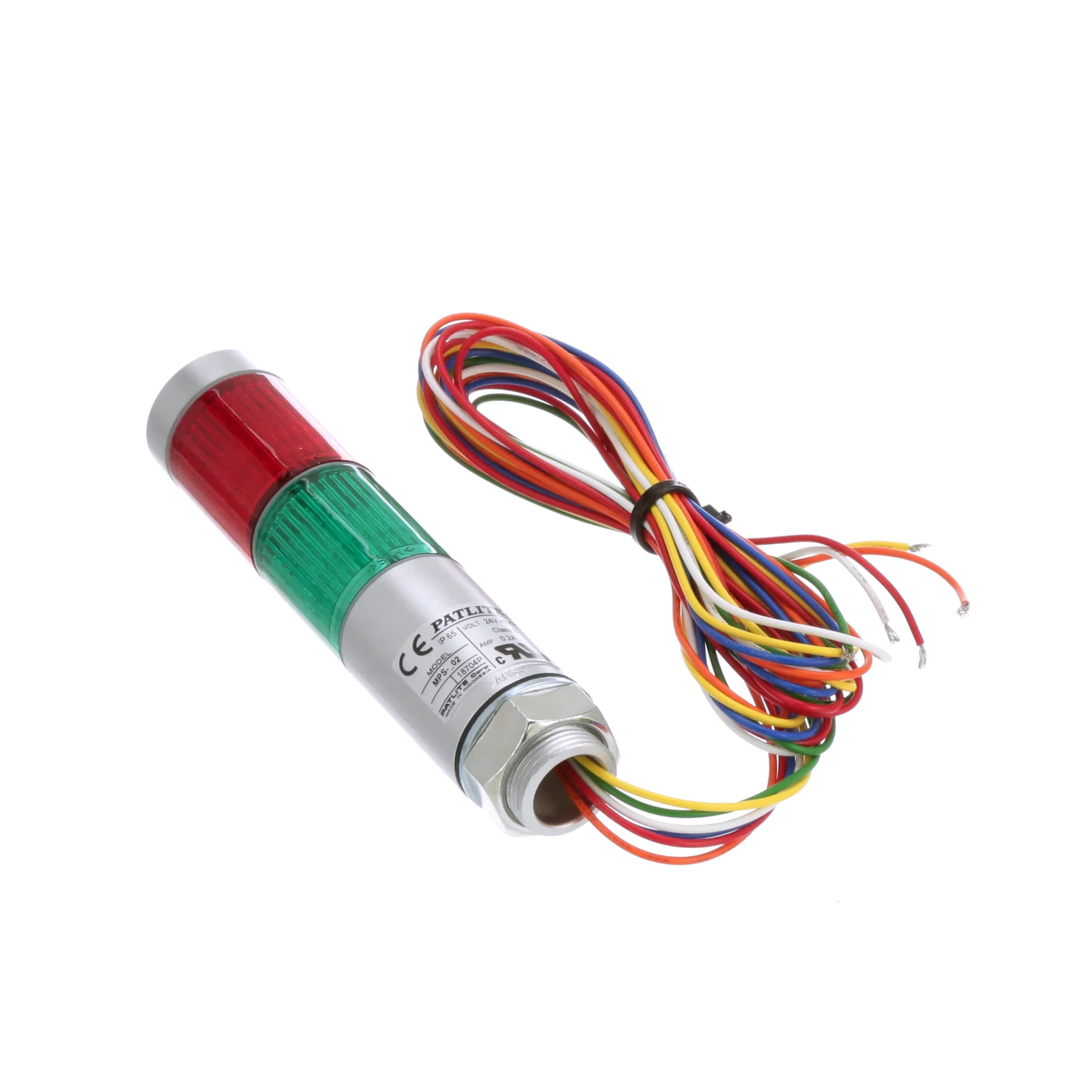

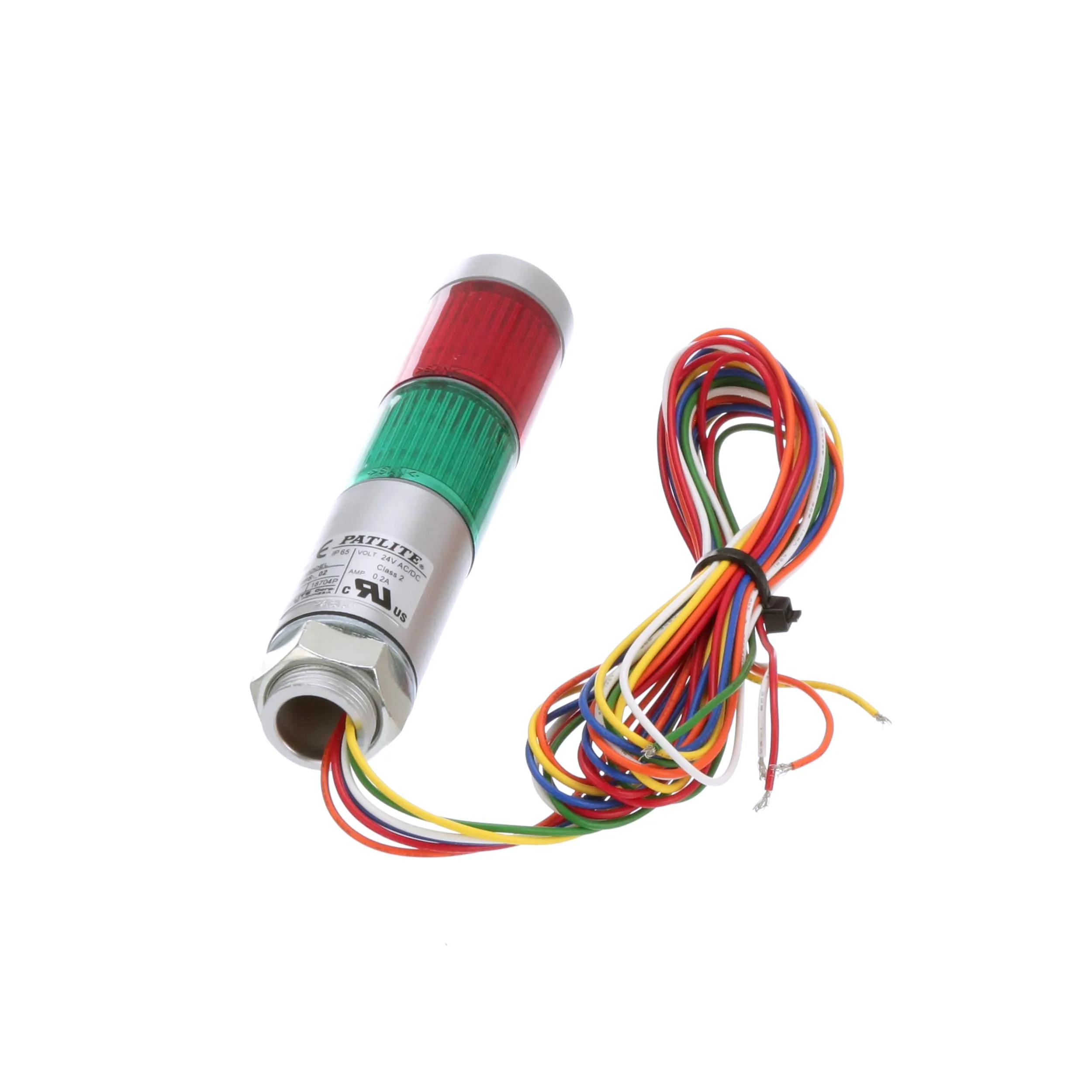

Diameter Size: 30 mm (1-1/4 In.)

ABS Resin Body is Available in 220 mm (8.66 In.) Standard Length (MP) or 45 mm (1.77 In.) Short Body (MPS)

Voltage: 24 VAC

LED Modules Are Interchangeable and Stackable After Purchase (Up to 5 LED Modules)

Colors Available: Red, Yellow, Green, Blue and Clear

UL Component Recognized

CE Compliant

IP-65 Rated

NPN and PNP Open Collector Transistor Compatible

All Models Are Shipped Pre-Wired and Pre-Assembled for Easy Ordering and Installation

Includes Hex Nut and Washer

Can Be Mounted on a Flat Surface with a Single Hole

Patented PATLITE LED Modules Provide the Highest Level of Visibility

LEDs with Long Life, Low Power Consumption, and Low Maintenance

Optional Mounting Brackets Are Available

All Clear Lenses (No Color Until Power is Supplied) Are Available By Special Order
