Overview

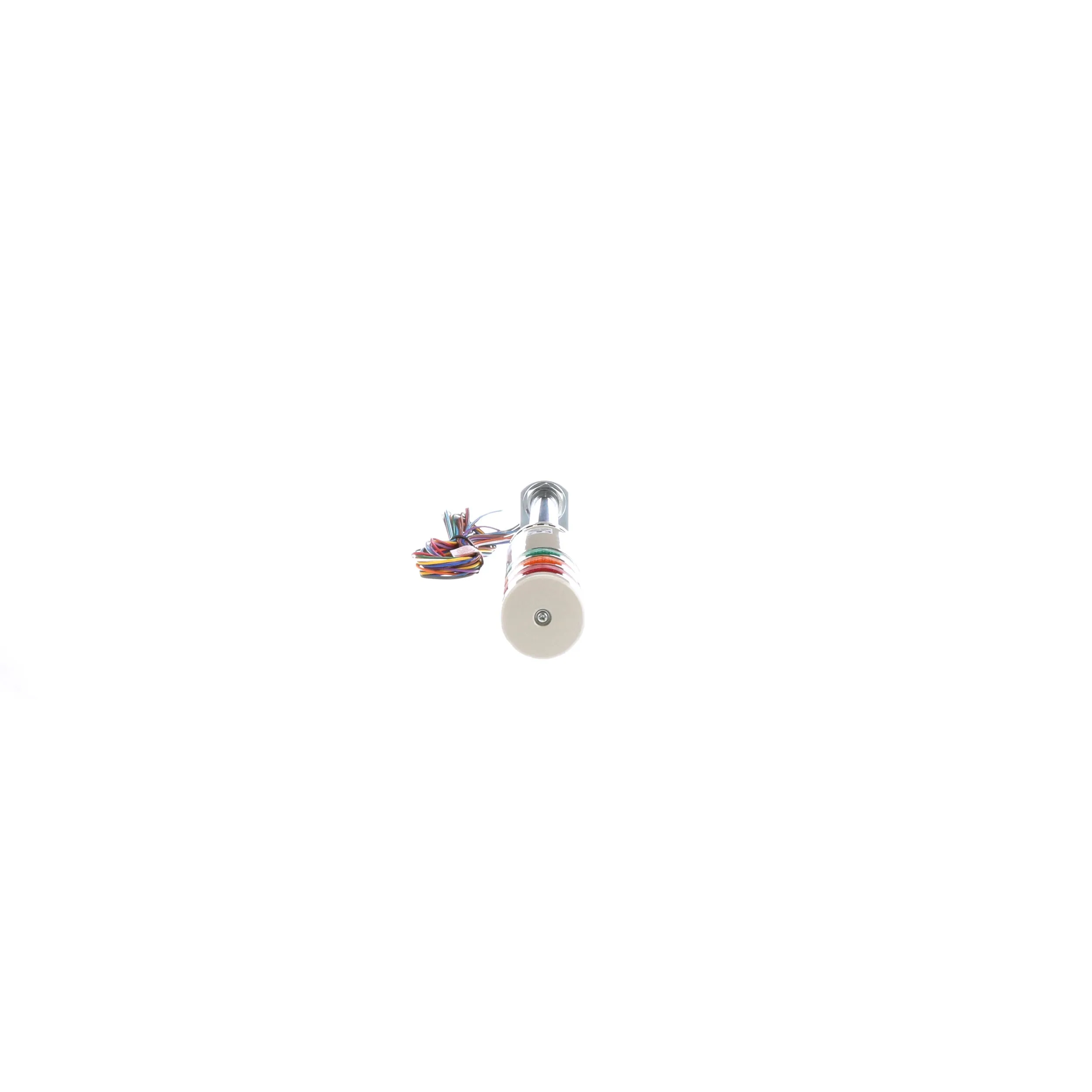

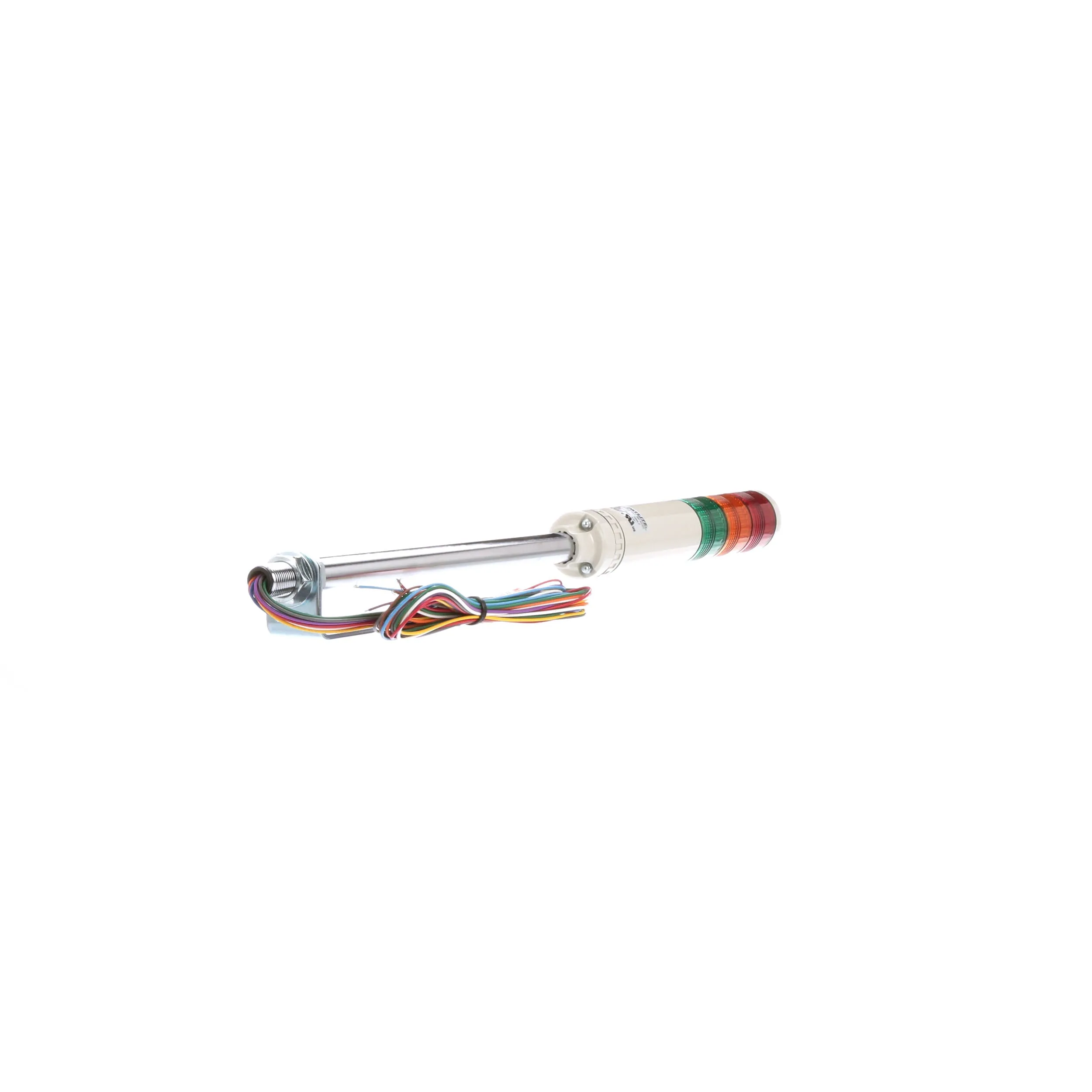

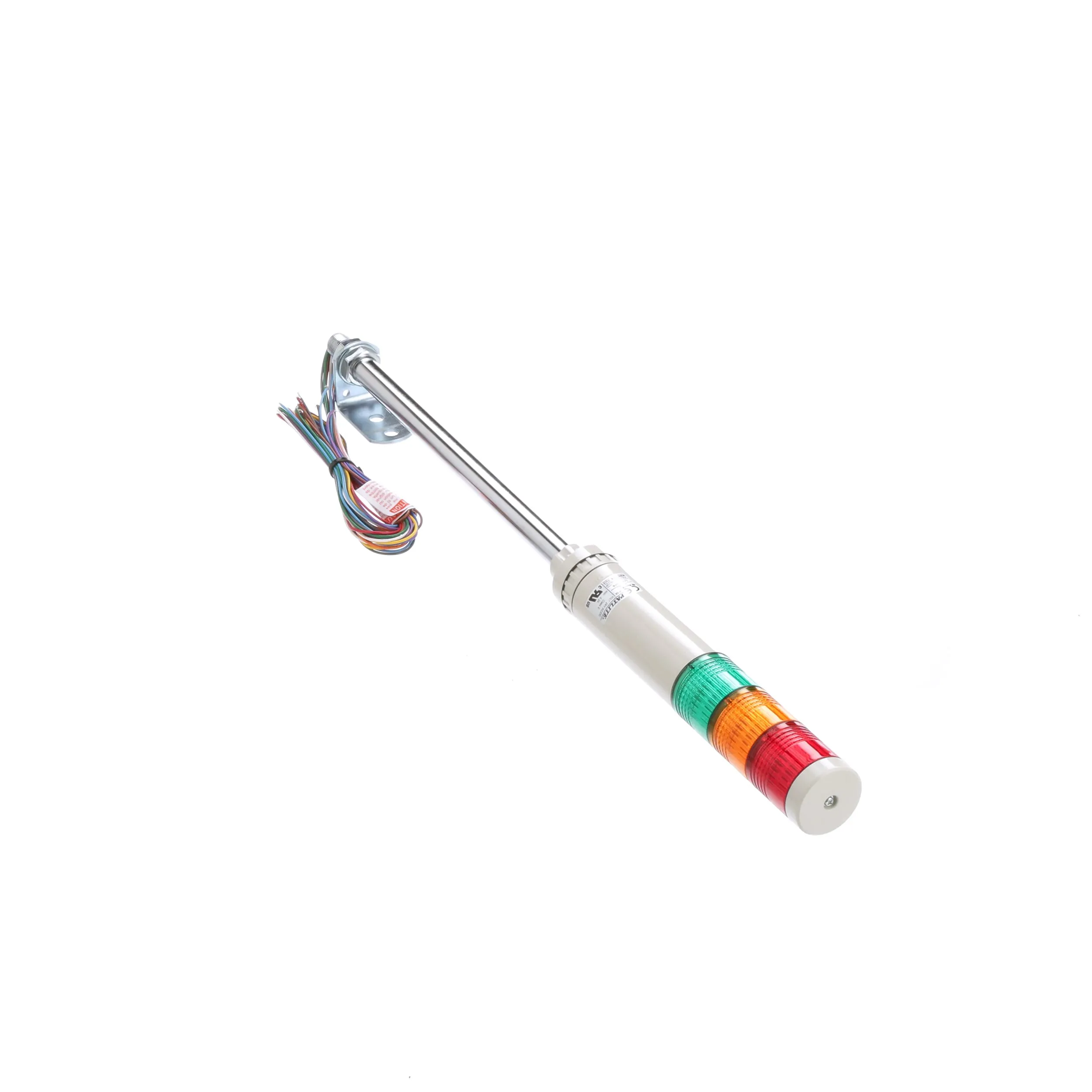

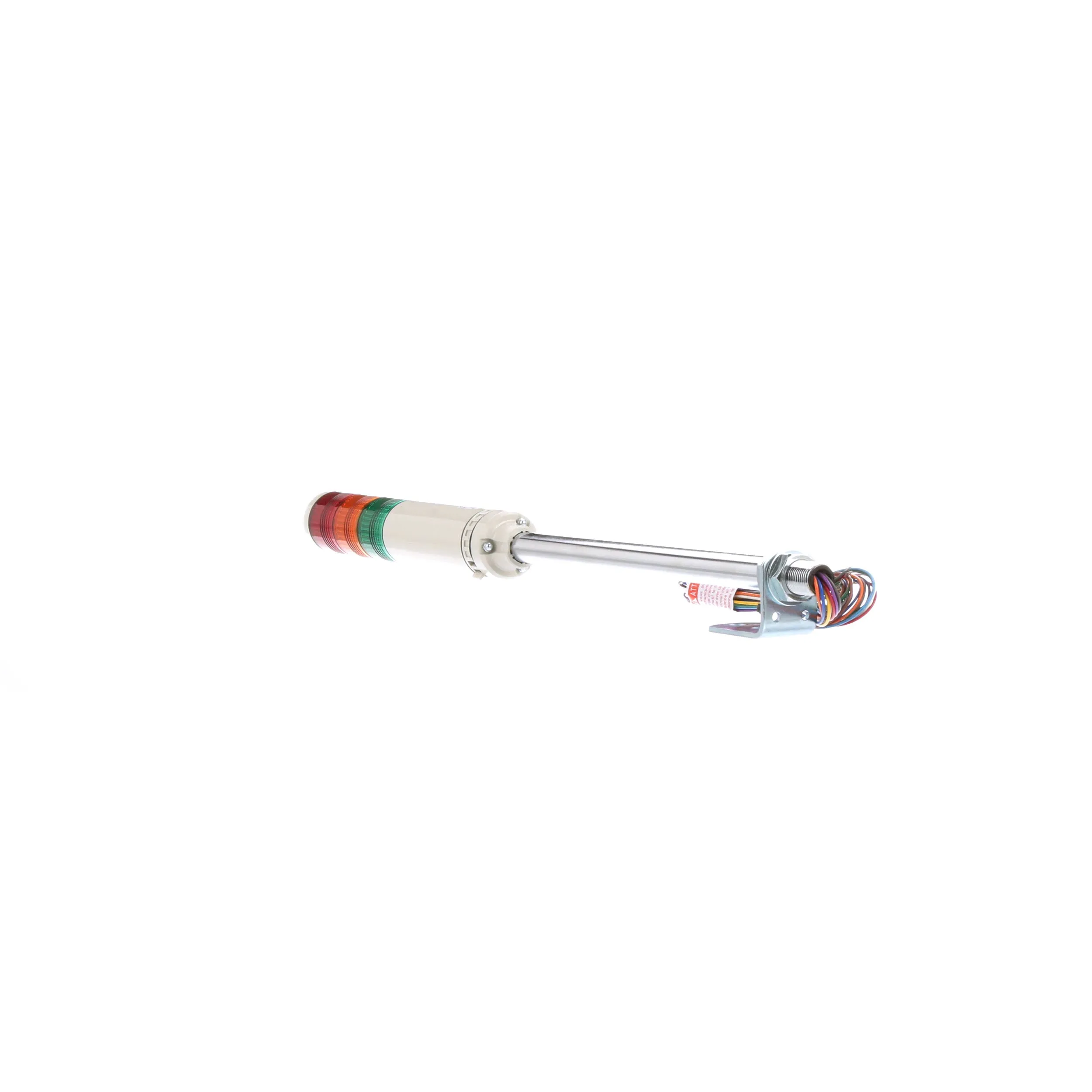

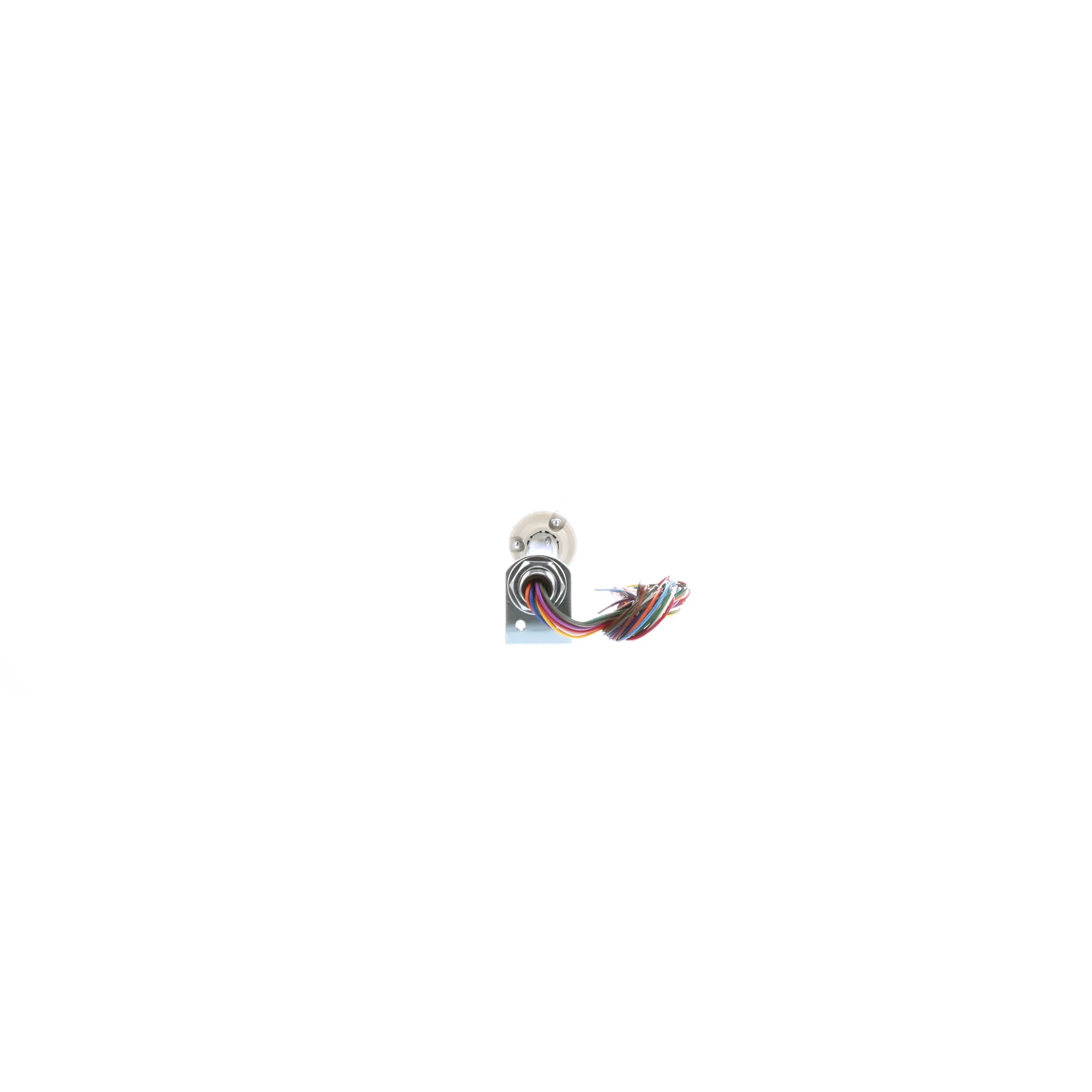

40 mm LED Signal Towers — LCE Series
Features:

Size: 40 mm (1.57") Diameter

Available in 24 VAC/VDC and “Free-Voltage” 90-250 VAC Versions

FB Types Include Two Selectable, Single-Tone Intermittent Alarms with Adjustable Volume to 85 dB (at 1 m) and Flashing Function

Colors Available: Red, Yellow, Green, Blue and Clear

LED Modules Are Interchangeable and Stackable After Purchase (Up to 5 Modules)

Units Are Shipped Completely Pre-Wired and Pre-Assembled

Pole Mount Versions Include 300 mm Steel Pole and Mounting Bracket (SZ-012) with Nuts and Washers

NPN or PNP Open Collector Compatible (24 V Type), and NPN Open Collector Compatible (90-250 V Type)

All Models Are CE Compliant

UL/C-UL Component Recognized

LCE-FB and LCE-FBW Types Meet IP54

LCE and LCE-W: Meets IP65

NEMA Rated: NEMA Type 4, 4X, 13 (Direct Mount Type Only)

Optional Mounting Brackets Available
